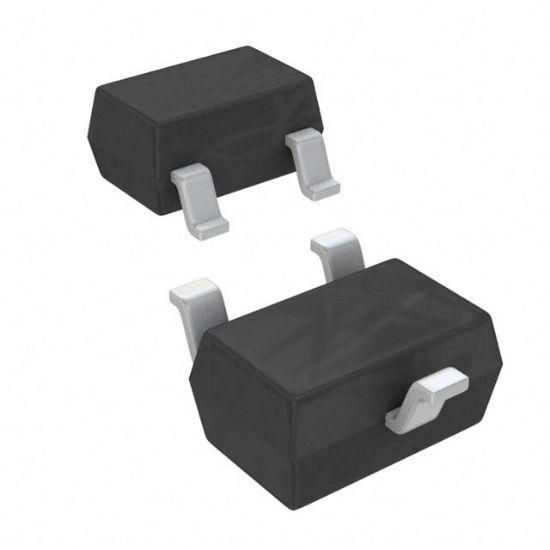

BSS214NW L6327

MOSFET N-CH 20V 1.5A SOT323-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSS214NW L6327

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSS214NW L6327 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	1.5A (Ta)
Rds On (Max) @ Id, Vgs	140mOhm @ 1.5A, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Package	Tape & Reel (TR)
Power Dissipation (Max)	500mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	1.2V @ 3.7μA
Gate Charge (Qg) (Max) @ Vgs	0.8 nC @ 5 V
Supplier Device Package	SOT-323
Input Capacitance (Ciss) (Max) @ Vds	143 pF @ 10 V
RoHS	RoHS
