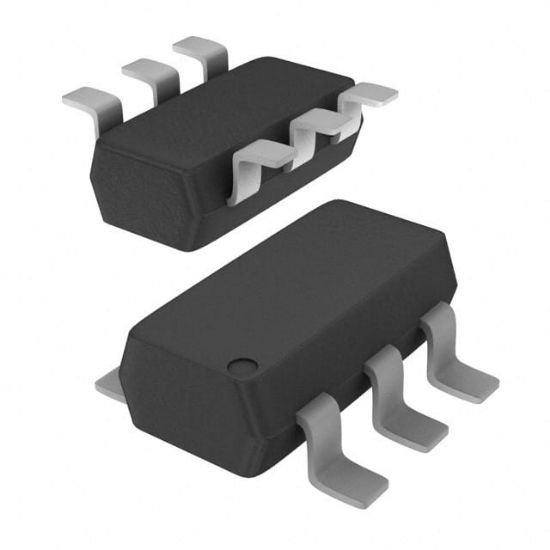

BSL716SNH6327XTSA1

MOSFET N-CH 75V 2.5A TSOP-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSL716SNH6327XTSA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSL716SNH6327XTSA1 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Rds On (Max) @ Id, Vgs	150mOhm @ 2.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Bulk
Power Dissipation (Max)	2W (Ta)
Drain to Source Voltage (Vdss)	75 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	1.8V @ 218μA
Gate Charge (Qg) (Max) @ Vgs	13.1 nC @ 10 V
Supplier Device Package	PG-TSOP6-6
Input Capacitance (Ciss) (Max) @ Vds	315 pF @ 25 V
RoHS	RoHS
