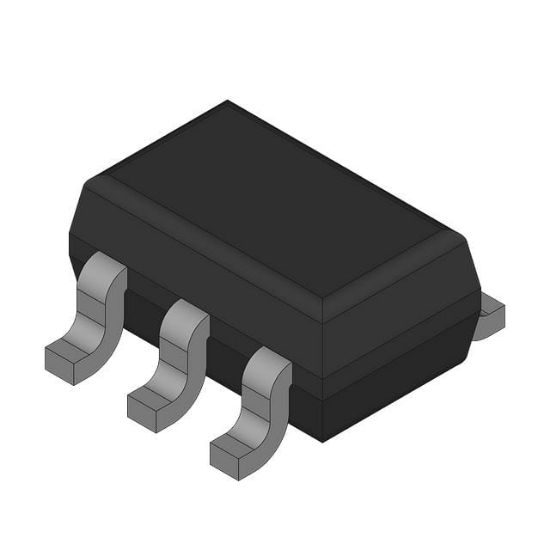

BSD816SNH6327

MOSFET N-CH 20V 1.4A SOT363-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: BSD816SNH6327

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSD816SNH6327 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta)
Rds On (Max) @ Id, Vgs	160mOhm @ 1.4A, 2.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	-
Package	Bulk
Power Dissipation (Max)	500mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	950mV @ 3.7μA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 2.5 V
Supplier Device Package	PG-SOT363-6
Input Capacitance (Ciss) (Max) @ Vds	180 pF @ 10 V
RoHS	RoHS
