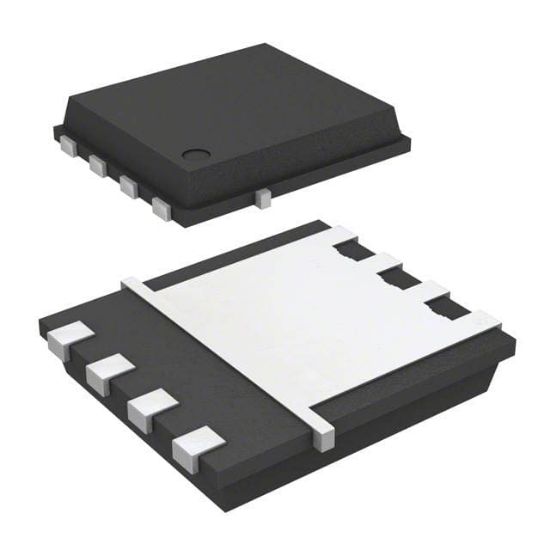

BSC090N03MSGATMA1

MOSFET N-CH 30V 12A/48A 8TDSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSC090N03MSGATMA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSC090N03MSGATMA1 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 48A (Tc)
Rds On (Max) @ Id, Vgs	9mOhm @ 30A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	2.5W (Ta), 32W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 10 V
Supplier Device Package	PG-TDSON-8-5
Input Capacitance (Ciss) (Max) @ Vds	1900 pF @ 15 V
RoHS	RoHS
