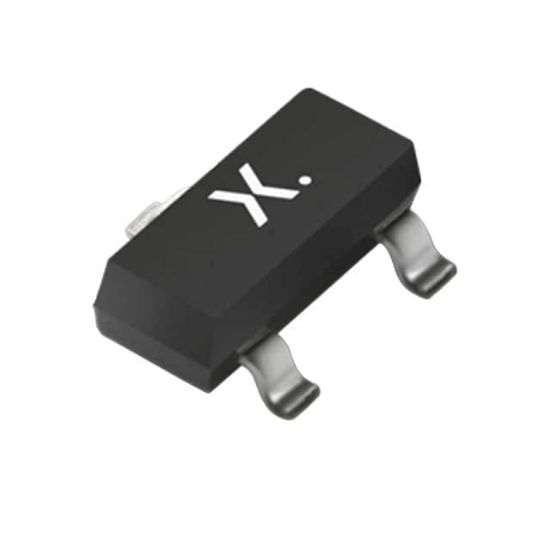

BCX70G,215-6311882

TRANS NPN 45V 100MA TO236AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: BCX70G,215-6311882

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BCX70G,215-6311882 Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	550mV @ 1.25mA, 50mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100 mA
Supplier Device Package	TO-236AB
Current - Collector Cutoff (Max)	20nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	250 mW
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 2mA, 5V
Frequency - Transition	250MHz
RoHS	RoHS
Transistor Type	NPN
