BCP69-16F

BCP69-16/SC-73/REEL 13" Q1/T1

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: BCP69-16F

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BCP69-16F Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	600mV @ 200mA, 2A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	2 A

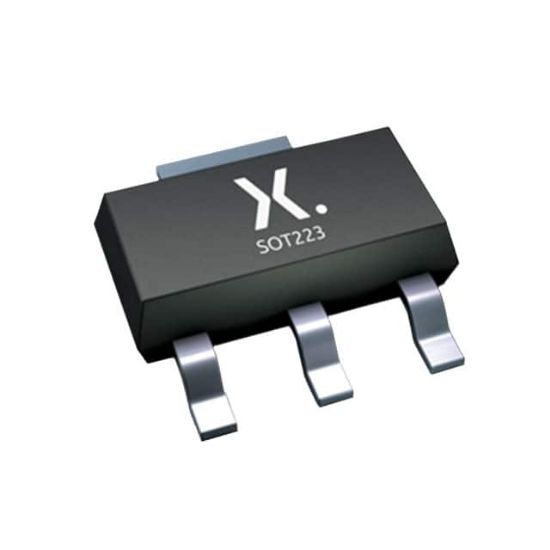

Supplier Device Package	SOT-223
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	20 V
Power - Max	650 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 500mA, 1V
Frequency - Transition	140MHz
RoHS	RoHS
Transistor Type	PNP
