BCP54TF

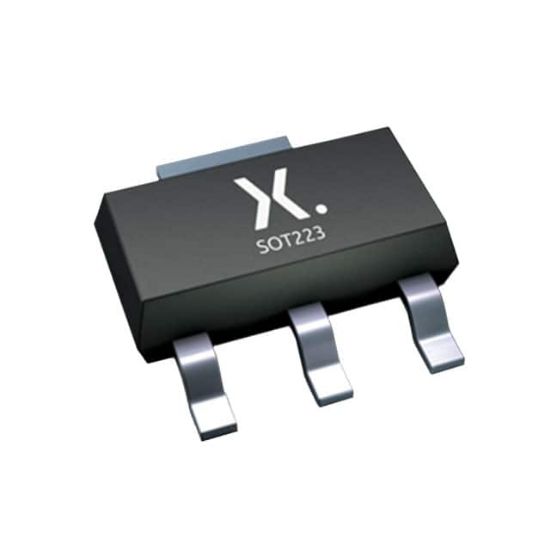

BCP54T/SOT223/SC-73

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: BCP54TF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BCP54TF Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1 A
Supplier Device Package	SOT-223
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	1.3 W
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Frequency - Transition	155MHz
RoHS	RoHS
Transistor Type	NPN
