BCP53-10T1G

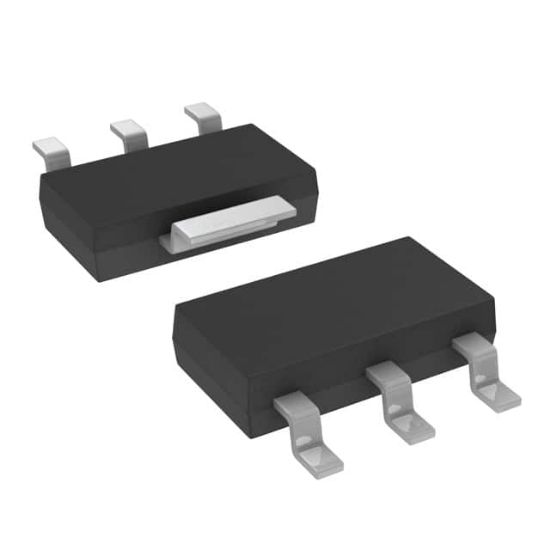

TRANS PNP 80V 1.5A SOT-223

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BCP53-10T1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BCP53-10T1G Description

Operating Temperature	-65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1.5 A
Supplier Device Package	SOT-223 (TO-261)
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	80 V
Power - Max	1.5 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Frequency - Transition	50MHz
RoHS	RoHS
Transistor Type	PNP
