BCP 54-16 H6778

TRANS NPN 45V 1A SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BCP 54-16 H6778

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BCP 54-16 H6778 Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1 A

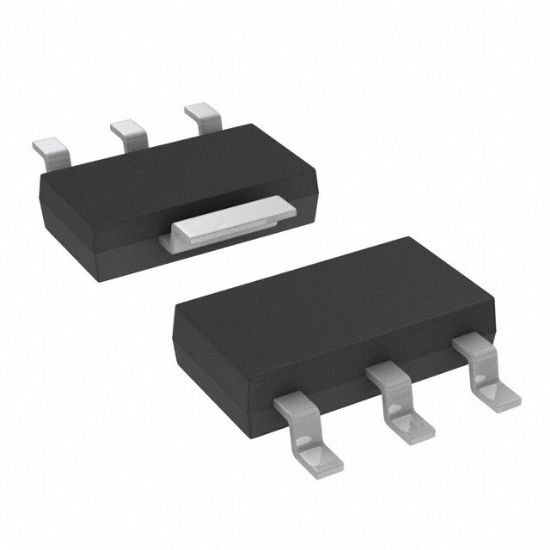

Supplier Device Package	PG-SOT223-4
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	2 W
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	NPN
