BC817-40W_R1_00001

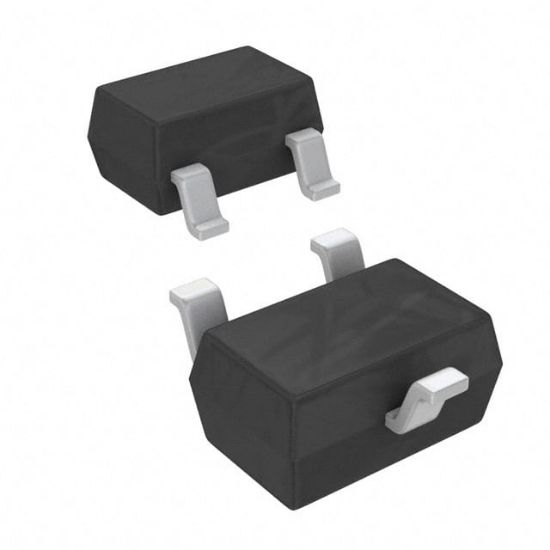

SOT-323, TRANSISTOR

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panjit International Inc.

SKU: BC817-40W_R1_00001

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BC817-40W_R1_00001 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	700mV @ 50mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	500 mA
Supplier Device Package	SOT-323
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	300 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	250 @ 100mA, 1V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	NPN
