BC63916-D74Z

TRANS NPN 80V 1A TO-92

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BC63916-D74Z

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BC63916-D74Z Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	1 A

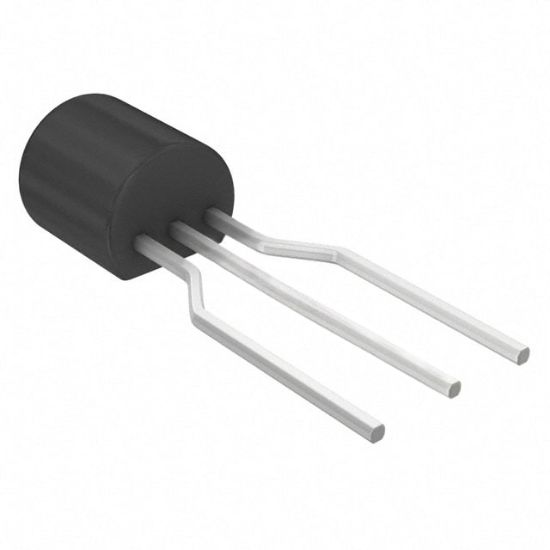

Supplier Device Package	TO-92-3
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	80 V
Power - Max	1 W
Package	Cut Tape (CT),Tape & Box (TB)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	NPN
