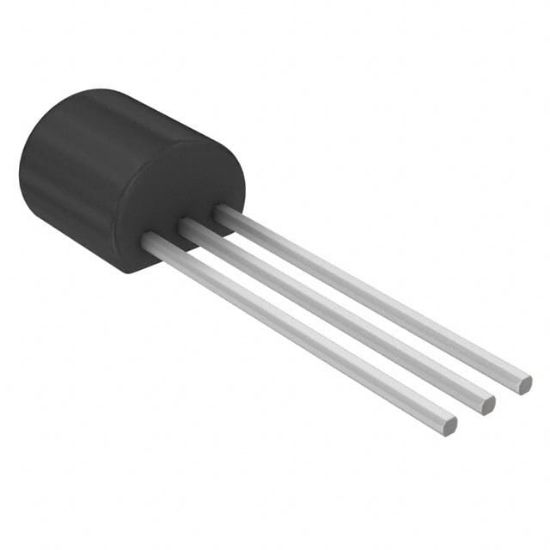

BC547CNMBU

TRANS NPN 45V 0.1A TO-92

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BC547CNMBU

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BC547CNMBU Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	100 mA
Supplier Device Package	TO-92-3
Current - Collector Cutoff (Max)	15nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	500 mW
Package	Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V
Frequency - Transition	300MHz
RoHS	RoHS
Transistor Type	NPN
