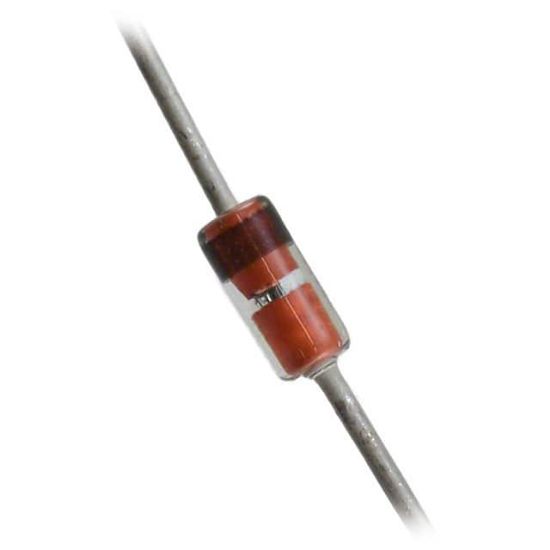

BAV20TR-6189737

RECTIFIER DIODE

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: BAV20TR-6189737

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAV20TR-6189737 Description

Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Through Hole
Supplier Device Package	DO-35 (DO-204AH)
Diode Type	Standard
Operating Temperature - Junction	175°C (Max)
Package	Bulk
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 200 mA
Current - Reverse Leakage @ Vr	100 nA @ 200 V
Reverse Recovery Time (trr)	50 ns
Voltage - DC Reverse (Vr) (Max)	200 V
Current - Average Rectified (Io)	200mA
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
