BAT30-07P6FILM

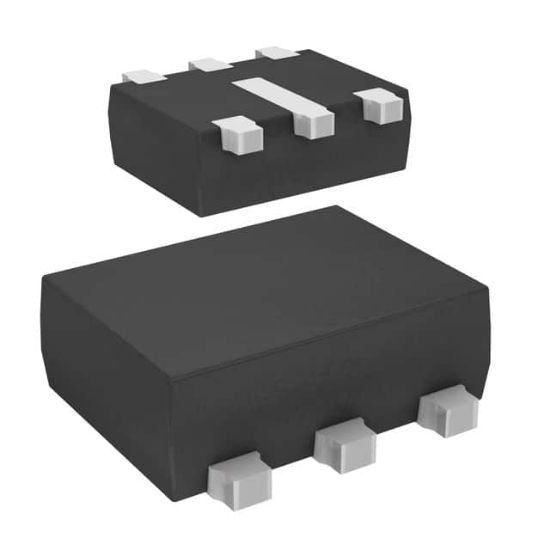

DIODE ARRAY SCHOTTKY 30V SOT666

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: BAT30-07P6FILM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAT30-07P6FILM Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P3	BAT30-07P6FILM		SOT-666	6	Small signal Schottky diode, Parallel

Current - Average Rectified (Io) (per Diode)	300mA (DC)
Mounting Type	Surface Mount
Supplier Device Package	SOT-666
Diode Type	Schottky
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	530 mV @ 300 mA
Current - Reverse Leakage @ Vr	5 μA @ 30 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	30 V
Diode Configuration	2 Independent
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
