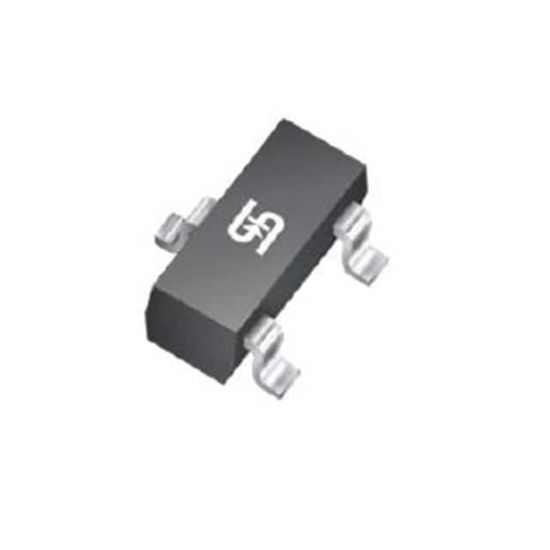

BAS70-04 RFG

DIODE ARRAY GP 70V 70MA SOT23

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: BAS70-04 RFG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAS70-04 RFG Description

Current - Average Rectified (Io) (per Diode)	70mA (DC)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 125°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	1 V @ 15 mA
Current - Reverse Leakage @ Vr	100 nA @ 50 V
Reverse Recovery Time (trr)	5 ns
Voltage - DC Reverse (Vr) (Max)	70 V
Diode Configuration	1 Pair Series Connection
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
