AT90PWM216-16SUR

IC MCU 8BIT 16KB FLASH 24SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: AT90PWM216-16SUR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AT90PWM216-16SUR Description

Number of I/O	19
Core Processor	AVR
EEPROM Size	512 x 8
Data Converters	A/D 8x10b; D/A 1x10b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 105°C (TA)

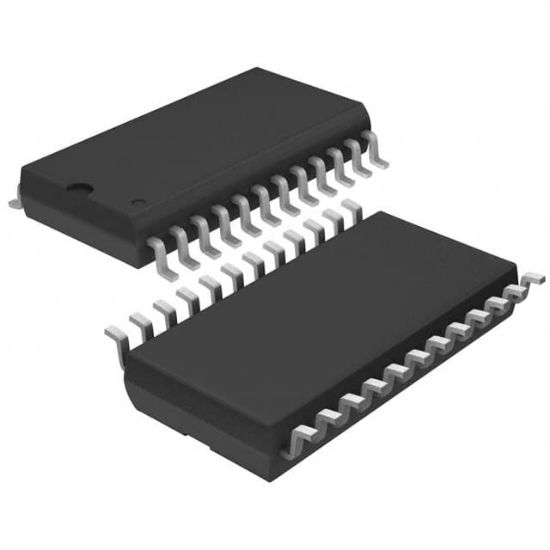

Supplier Device Package	24-SOIC
Core Size	8-Bit
Program Memory Size	16KB (16K x 8)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Connectivity	SPI, UART/USART
RoHS	RoHS
Speed	16MHz
RAM Size	1K x 8
