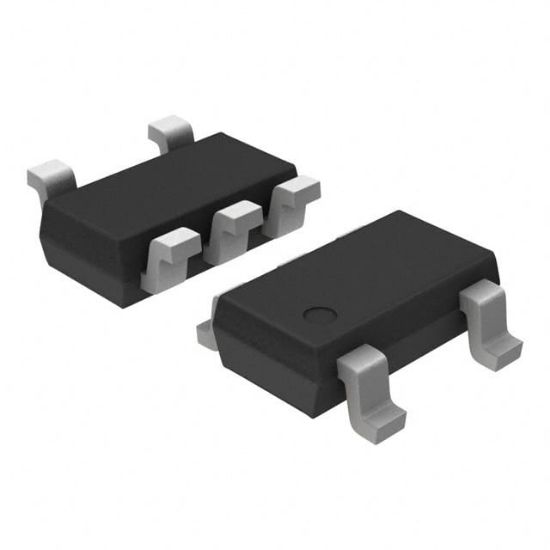

AP3406AKT-ADJTRG1

IC REG BUCK ADJ 800MA TSOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: AP3406AKT-ADJTRG1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AP3406AKT-ADJTRG1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
L2A	AP3406AKT-ADJTRG1	BCD	TSOT-23-5	5	1.1MHz，800mA同步DC-DC Buck变换器

Operating Temperature	-40°C ~ 85°C (TA)
Frequency - Switching	1.1MHz
Voltage - Output (Min/Fixed)	0.6V
Mounting Type	Surface Mount
Current - Output	800mA
Supplier Device Package	TSOT-23-5
Synchronous Rectifier	Yes
Function	Step-Down
Output Configuration	Positive
Voltage - Input (Min)	2.5V
Package	Tape & Reel (TR)
Topology	Buck
Voltage - Input (Max)	5.5V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	5.5V
Output Type	Adjustable
