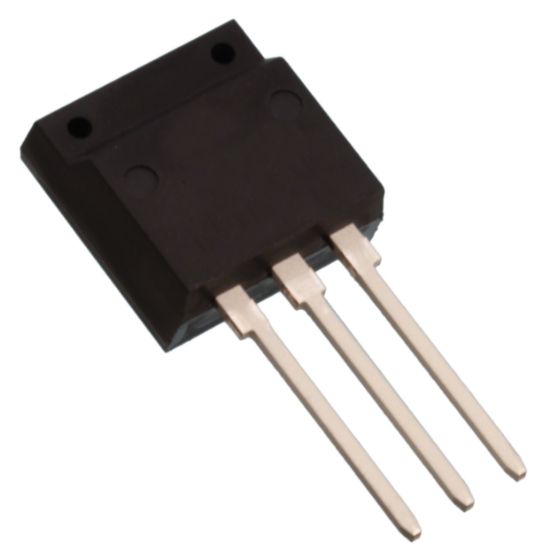

AOWF12N60

MOSFET N-CH 600V 12A TO262F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOWF12N60

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOWF12N60 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
WF12N60	AOWF12N60		TO262F	0	600V,12A N-Channel MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Rds On (Max) @ Id, Vgs	550mOhm @ 6A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	28W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V
Supplier Device Package	TO-262F
Input Capacitance (Ciss) (Max) @ Vds	2100 pF @ 25 V
RoHS	RoHS
