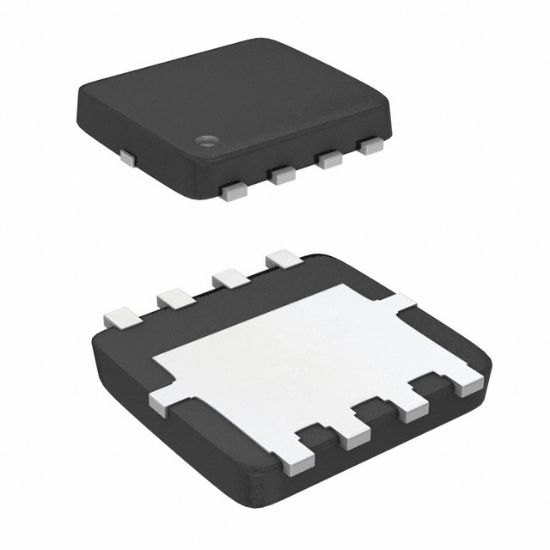

AON7422G

MOSFET N-CHANNEL 30V 32A 8DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON7422G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON7422G Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	32A (Tc)
Rds On (Max) @ Id, Vgs	4.6mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	28W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V
Supplier Device Package	8-DFN-EP (3x3)
Input Capacitance (Ciss) (Max) @ Vds	2300 pF @ 15 V
RoHS	RoHS
