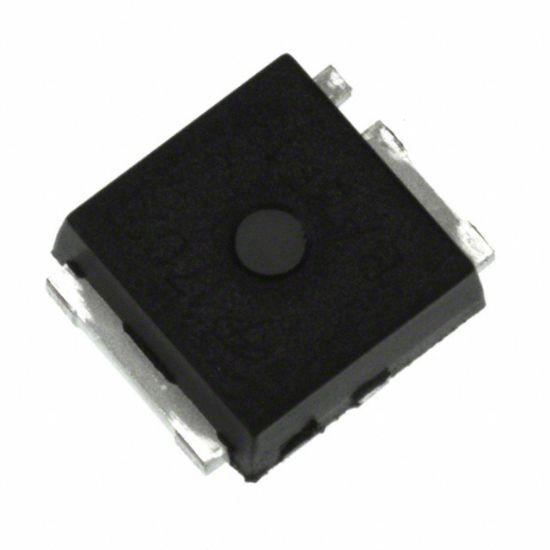

AOL1426

MOSFET N-CH 30V 10A/46A ULTRASO8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOL1426

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOL1426 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1426	AOL1426	Aosmd	UltraSO-8(3p)	3	N沟道增强型场效应晶体管

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 46A (Tc)
Rds On (Max) @ Id, Vgs	10.5mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2W (Ta), 43W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	28 nC @ 10 V
Supplier Device Package	UltraSO-8?
Input Capacitance (Ciss) (Max) @ Vds	1452 pF @ 15 V
RoHS	RoHS
