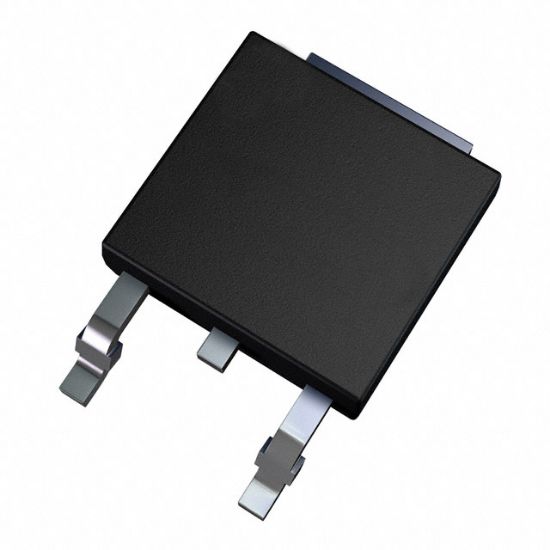

AOD456

MOSFET N-CH 25V 50A TO252

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOD456

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOD456 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D456	AOD456		TO-252	0	N-Channel Enhancement Mode Field Effect Transistor

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Rds On (Max) @ Id, Vgs	6mOhm @ 30A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	3W (Ta), 50W (Tc)
Drain to Source Voltage (Vdss)	25 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V
Supplier Device Package	TO-252 (DPAK)
Input Capacitance (Ciss) (Max) @ Vds	2220 pF @ 12.5 V
RoHS	RoHS
