AOD4189

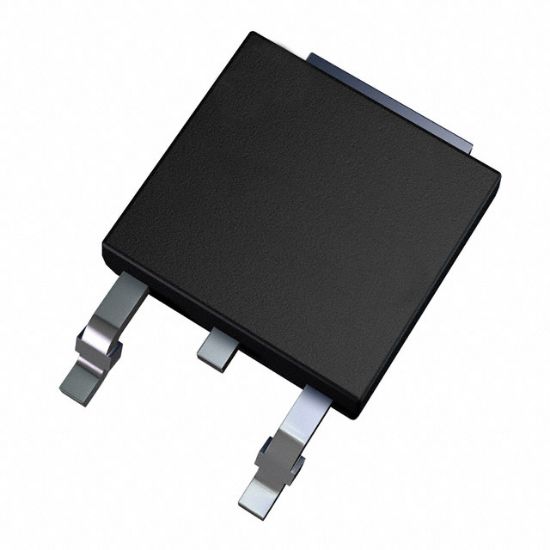

MOSFET P-CH 40V 40A TO252

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOD4189

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOD4189 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D4189	AOD4189	Aosmd	TO-252	3	P沟道增强型场效应晶体管

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Rds On (Max) @ Id, Vgs	22mOhm @ 12A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.5W (Ta), 62.5W (Tc)
Drain to Source Voltage (Vdss)	40 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	41 nC @ 10 V
Supplier Device Package	TO-252 (DPAK)
Input Capacitance (Ciss) (Max) @ Vds	1870 pF @ 20 V
RoHS	RoHS
