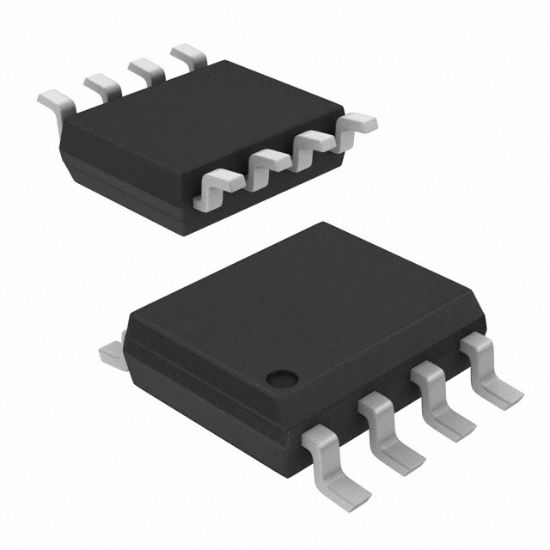

AO4290A

MOSFET N-CH 100V 15.5A 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AO4290A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AO4290A Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	15.5A (Ta)
Rds On (Max) @ Id, Vgs	6.4mOhm @ 15.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	3.1W (Ta)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	95 nC @ 10 V
Supplier Device Package	8-SOIC
Input Capacitance (Ciss) (Max) @ Vds	4525 pF @ 50 V
RoHS	RoHS
