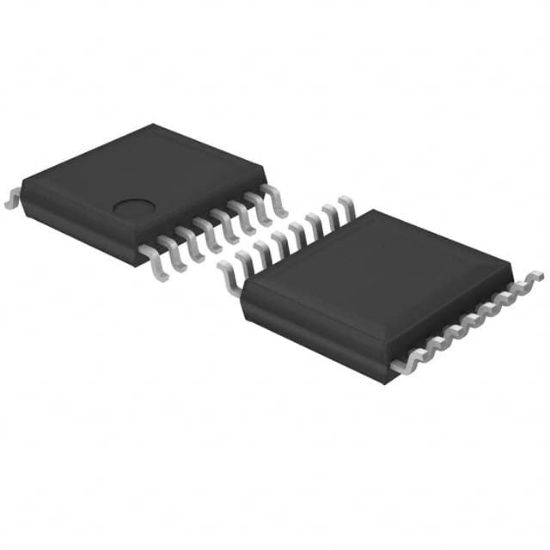

AN8014S-E1

IC REG CTRLR BUCK/BOOST 16SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: AN8014S-E1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AN8014S-E1 Description

Operating Temperature	-30°C ~ 85°C (TA)
Frequency - Switching	218kHz
Output Phases	1
Clock Sync	No
Supplier Device Package	16-SOP
Synchronous Rectifier	No
Serial Interfaces	-
Function	Step-Up, Step-Down
Mounting Type	Surface Mount
Output Configuration	Positive or Negative
Package	Tape & Reel (TR),Cut Tape (CT)
Control Features	Dead Time Control, Enable, Frequency Control
Duty Cycle (Max)	52%
Topology	Buck, Boost
Voltage - Supply (Vcc/Vdd)	3.6V ~ 34V
Number of Outputs	1
RoHS	RoHS
Output Type	Transistor Driver
