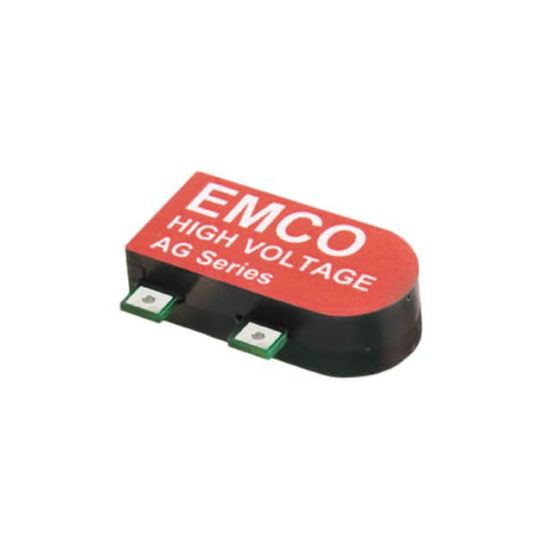

AG15P-5

DC DC CONVERTER 1500V 1W

1 review(s) | Add your review

Availability: In stock

Manufacturer: XP Power

SKU: AG15P-5

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AG15P-5 Description

Operating Temperature	-25°C ~ 75°C
Voltage - Output 3	-
Current - Output (Max)	670μA
Voltage - Input (Max)	5V
Mounting Type	Surface Mount
Supplier Device Package	-
Voltage - Output 1	1500V
Size / Dimension	0.92\" L x 0.45\" W x 0.25\" H (23.4mm x 11.4mm x 6.4mm)
Voltage - Isolation	500 V
Voltage - Input (Min)	0.7V
Package	Box
Voltage - Output 4	-
Efficiency	-
Control Features	-
Approval Agency	-
Power (Watts)	1 W
Type	High Voltage - Isolated Module
Standard Number	62368-1
Number of Outputs	1
Applications	ITE (Commercial)
Features	Proportional Output
RoHS	RoHS
Voltage - Output 2	-
