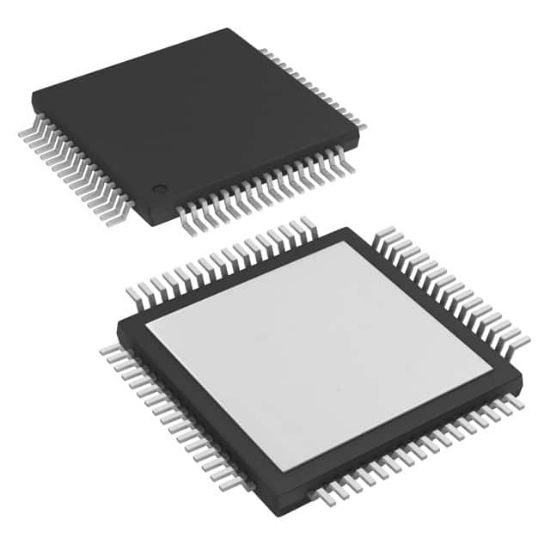

ADS5520IPAP

IC ADC 12BIT PIPELINED 64HTQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: ADS5520IPAP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ADS5520IPAP Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ADS5520I	ADS5520IPAP		HTQFP-64	64	12-Bit, 125MSPS Analog-to-Digital Converter

Operating Temperature	-40°C ~ 85°C
Data Interface	Parallel
Number of A/D Converters	1
Reference Type	Internal
Mounting Type	Surface Mount
Supplier Device Package	64-HTQFP (10x10)
Number of Bits	12
Number of Inputs	1
Package	Bulk,Tray
Configuration	S/H-ADC
Architecture	Pipelined
Input Type	Differential
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	3V ~ 3.6V
Features	-
Sampling Rate (Per Second)	125M
RoHS	RoHS
Voltage - Supply, Digital	3V ~ 3.6V
