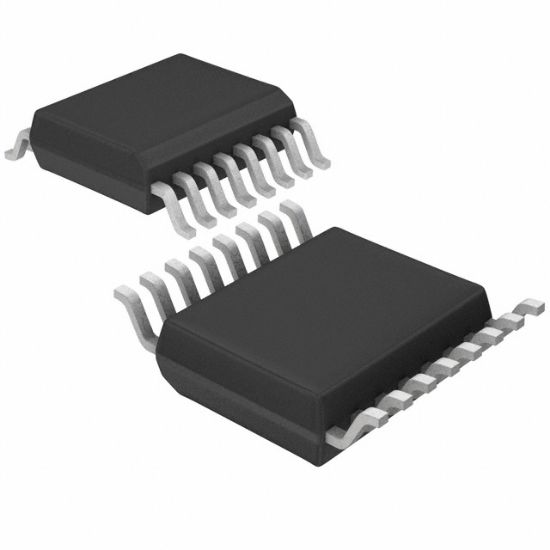

ADG733BRUZ

IC SWITCH TRIPLE SPDT 16TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: ADG733BRUZ

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ADG733BRUZ Description

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	11pF
On-State Resistance (Max)	4.5Ohm
Mounting Type	Surface Mount
Supplier Device Package	16-TSSOP
Switch Circuit	SPDT
Voltage - Supply, Dual (V±)	±2.5V
Number of Circuits	3
Package	Tube
Charge Injection	5pC
Switch Time (Ton, Toff) (Max)	21ns, 10ns (Typ)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Crosstalk	-67dB @ 1MHz
Multiplexer/Demultiplexer Circuit	2:1
Channel-to-Channel Matching (ΔRon)	-
-3db Bandwidth	200MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	100pA
