AD9640ABCPZ-125

IC ADC 14BIT PIPELINED 64LFCSP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: AD9640ABCPZ-125

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AD9640ABCPZ-125 Description

Operating Temperature	-40°C ~ 85°C
Data Interface	Parallel
Number of A/D Converters	2
Reference Type	External, Internal
Mounting Type	Surface Mount

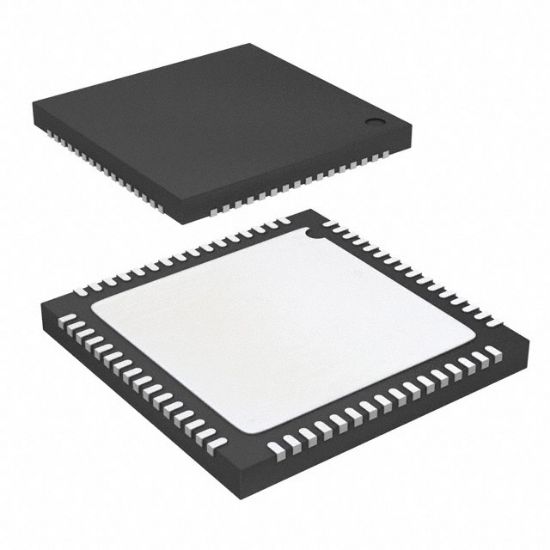

Supplier Device Package	64-LFCSP-VQ (9x9)
Number of Bits	14
Number of Inputs	2
Package	Tray
Configuration	S/H-ADC
Architecture	Pipelined
Input Type	Differential, Single Ended
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	1.7V ~ 1.9V
Features	Simultaneous Sampling
Sampling Rate (Per Second)	125M
RoHS	RoHS
Voltage - Supply, Digital	1.7V ~ 1.9V
