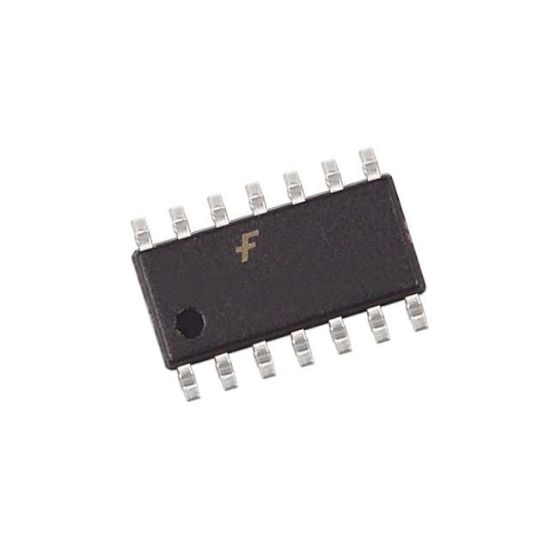

74LCX10SJX

IC GATE NAND 3CH 3-INP 14SOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: 74LCX10SJX

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

74LCX10SJX Description

Voltage - Supply	2.3V ~ 3.6V
Logic Type	NAND Gate
Max Propagation Delay @ V, Max CL	4.9ns @ 3.3V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-SOP
Logic Level - High	1.7V ~ 2V
Number of Circuits	3
Package	Tape & Reel (TR)
Current - Quiescent (Max)	10 μA
Logic Level - Low	0.7V ~ 0.8V
Number of Inputs	3
Operating Temperature	-40°C ~ 85°C
Features	-
RoHS	RoHS
Current - Output High, Low	24mA, 24mA
