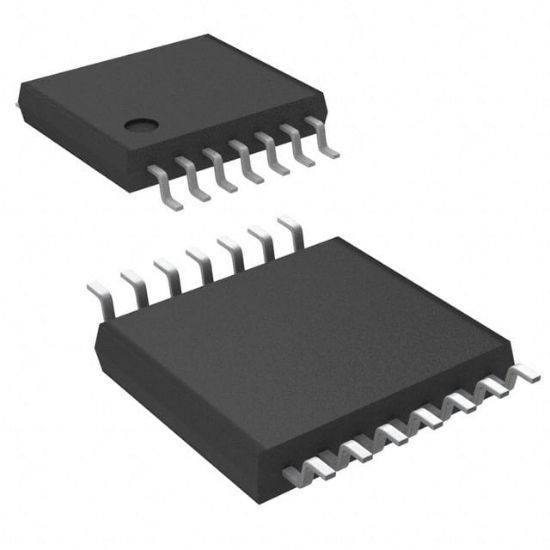

74LCX00YTTR

IC GATE NAND 4CH 2-INP 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: 74LCX00YTTR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

74LCX00YTTR Description

Voltage - Supply	2V ~ 3.6V
Logic Type	NAND Gate
Max Propagation Delay @ V, Max CL	4.3ns @ 3.3V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Logic Level - High	2V
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	10 μA
Logic Level - Low	0.8V
Number of Inputs	2
Operating Temperature	-40°C ~ 85°C
Features	-
RoHS	RoHS
Current - Output High, Low	24mA, 24mA
