74AC11032DBR

IC GATE OR 4CH 2-INP 16SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: 74AC11032DBR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

74AC11032DBR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
AE032	74AC11032DBR	TI	16	0	Quadruple 2-Input Positive-OR Gates

Voltage - Supply	3V ~ 5.5V
Logic Type	OR Gate
Max Propagation Delay @ V, Max CL	6.2ns @ 5V, 50pF
Mounting Type	Surface Mount

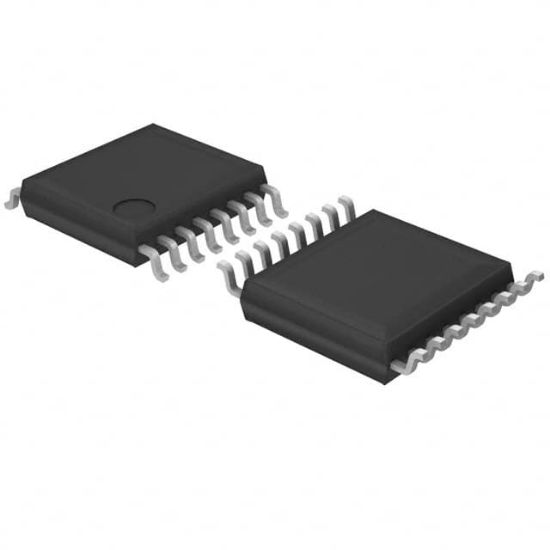

Supplier Device Package	16-SSOP
Logic Level - High	2.1V ~ 3.85V
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Quiescent (Max)	4 μA
Logic Level - Low	0.9V ~ 1.65V
Number of Inputs	2
Operating Temperature	-40°C ~ 85°C
Features	-
RoHS	RoHS
Current - Output High, Low	24mA, 24mA
