5962-0824202HPC

OPTOISO 1.5KV 2CH OPEN COLL 8DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Broadcom Limited

SKU: 5962-0824202HPC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

5962-0824202HPC Description

Voltage - Supply	3V ~ 3.6V
Rise / Fall Time (Typ)	20ns, 8ns
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Data Rate	10MBd

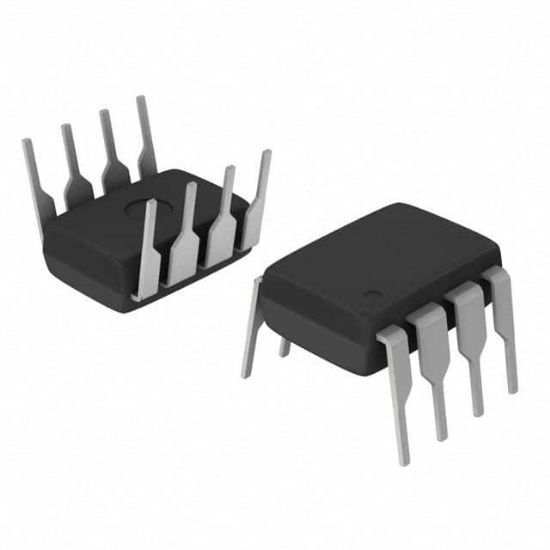

Supplier Device Package	8-DIP
Common Mode Transient Immunity (Min)	1kV/μs
Number of Channels	2
Package	Tube
Voltage - Forward (Vf) (Typ)	1.55V
Mounting Type	Through Hole
Inputs - Side 1/Side 2	2/0
Current - Output / Channel	25 mA
Input Type	DC
Operating Temperature	-55°C ~ 125°C
Current - DC Forward (If) (Max)	20mA
Voltage - Isolation	1500VDC
RoHS	RoHS
Output Type	Open Collector, Schottky Clamped
