2SB0956GRL

TRANS PNP 20V 1A MINIP-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: 2SB0956GRL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2SB0956GRL Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
HR	2SB0956GRL	Panasonic	SOT-89/SC-62	0	三极管Bipolar Junction Transistors(BJT) PNP

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 1A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1 A

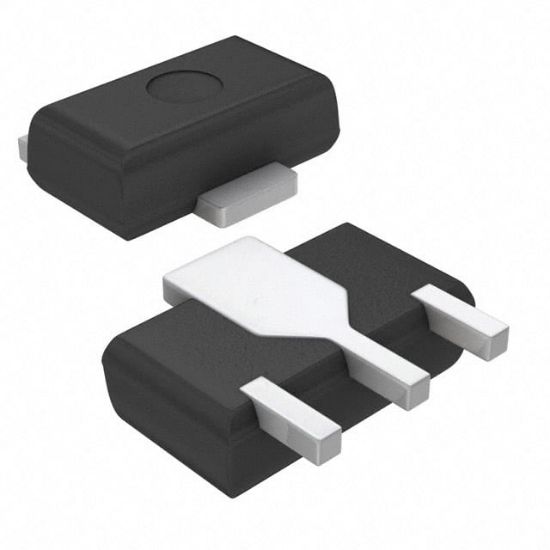

Supplier Device Package	MiniP3-F2
Current - Collector Cutoff (Max)	1μA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	20 V
Power - Max	1 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	130 @ 500mA, 2V
Frequency - Transition	200MHz
RoHS	RoHS
Transistor Type	PNP
