2SA0720ARA

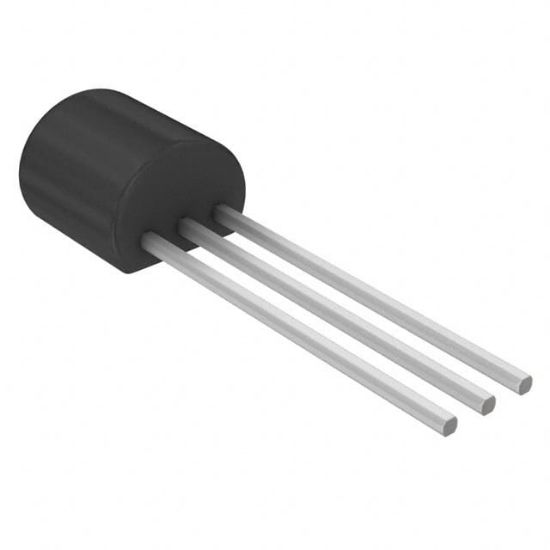

TRANS PNP 70V 0.5A TO-92

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: 2SA0720ARA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2SA0720ARA Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	600mV @ 30mA, 300mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	500 mA
Supplier Device Package	TO-92-B1
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	70 V
Power - Max	625 mW
Package	Cut Tape (CT),Tape & Box (TB)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 150mA, 10V
Frequency - Transition	120MHz
RoHS	RoHS
Transistor Type	PNP
