2PB1424,115-6310963

TRANS PNP 20V 3A SOT89

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: 2PB1424,115-6310963

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2PB1424,115-6310963 Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 2A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	3 A

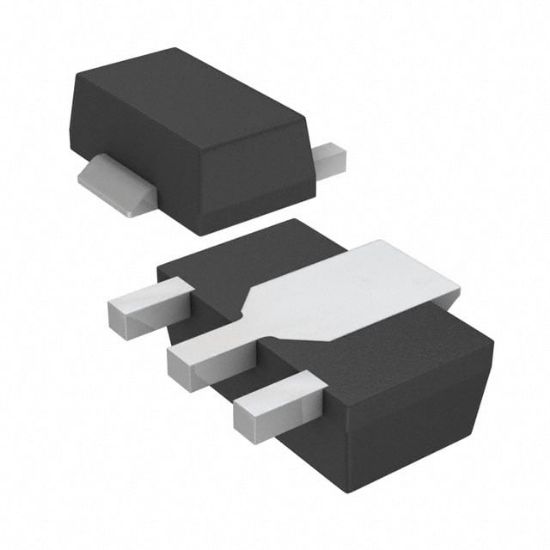

Supplier Device Package	SOT-89
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	20 V
Power - Max	2 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	180 @ 100mA, 2V
Frequency - Transition	125MHz
RoHS	RoHS
Transistor Type	PNP
