2N6520-AP

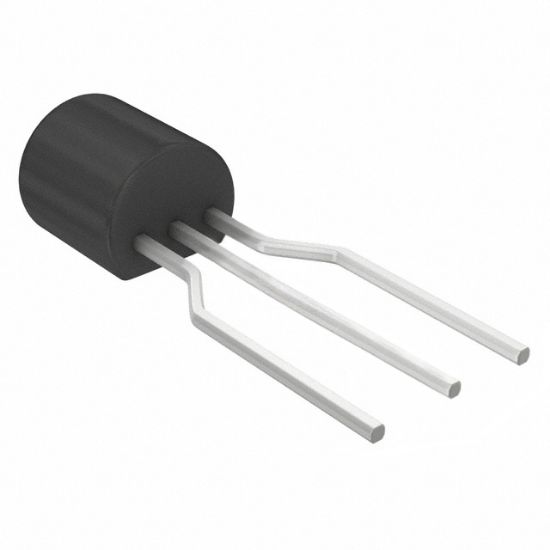

TRANS PNP TO-92

1 review(s) | Add your review

Availability: In stock

Manufacturer: Micro Commercial Co

SKU: 2N6520-AP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N6520-AP Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	1V @ 5mA, 50mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	500 mA
Supplier Device Package	TO-92
Current - Collector Cutoff (Max)	50nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	350 V
Power - Max	625 mW
Package	Tape & Box (TB)
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 30mA, 10V
Frequency - Transition	40MHz
RoHS	RoHS
Transistor Type	PNP
