2N5400-6306396

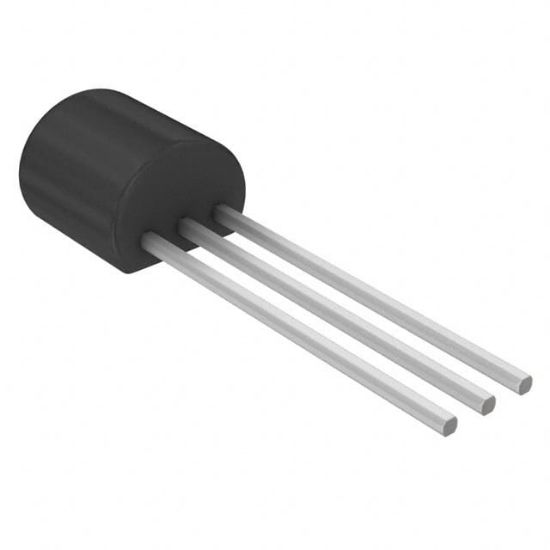

TRANS PNP 120V 0.6A TO-92

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: 2N5400-6306396

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N5400-6306396 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 50mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	600 mA
Supplier Device Package	TO-92 (TO-226)
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	120 V
Power - Max	625 mW
Package	Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 10mA, 5V
Frequency - Transition	400MHz
RoHS	RoHS
Transistor Type	PNP
