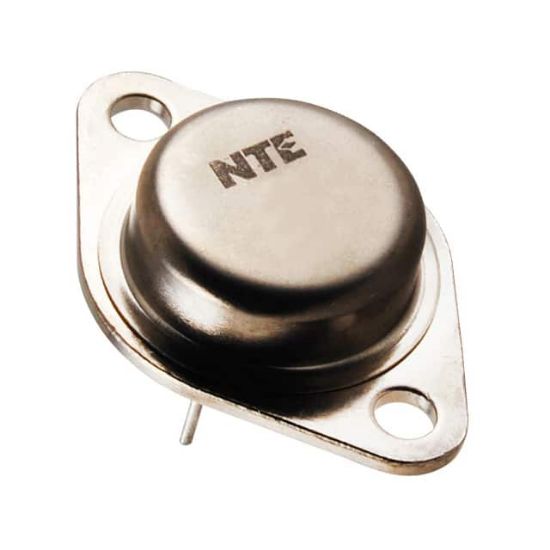

2N5303-6310012

TRANS NPN 80V 20A TO3

1 review(s) | Add your review

Availability: In stock

Manufacturer: NTE Electronics, Inc

SKU: 2N5303-6310012

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N5303-6310012 Description

Operating Temperature	-65°C ~ 200°C (TJ)
Vce Saturation (Max) @ Ib, Ic	2V @ 4A, 20A
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	20 A
Supplier Device Package	TO-3
Current - Collector Cutoff (Max)	5mA
Voltage - Collector Emitter Breakdown (Max)	80 V
Power - Max	200 W
Package	Bag
DC Current Gain (hFE) (Min) @ Ic, Vce	15 @ 15A, 2V
Frequency - Transition	2MHz
RoHS	RoHS
Transistor Type	NPN
