2DA1201YQTC

TRANS PNP 120V 0.8A SOT89

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: 2DA1201YQTC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2DA1201YQTC Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	800 mA

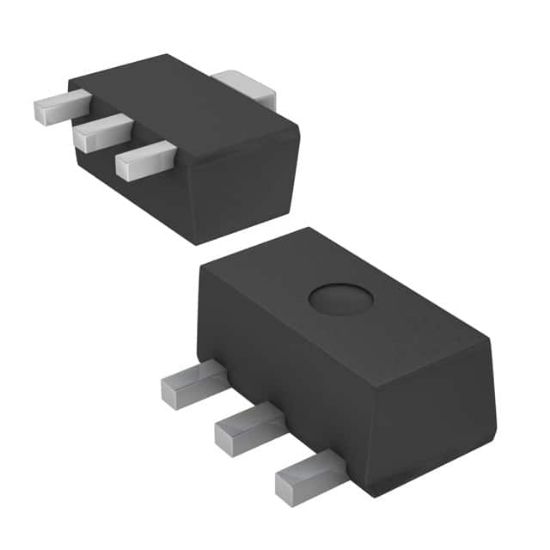

Supplier Device Package	SOT-89-3
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	120 V
Power - Max	1.5 W
Package	Tape & Reel (TR),Cut Tape (CT)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 100mA, 5V
Frequency - Transition	160MHz
RoHS	RoHS
Transistor Type	PNP
