1PMT5924BT1G

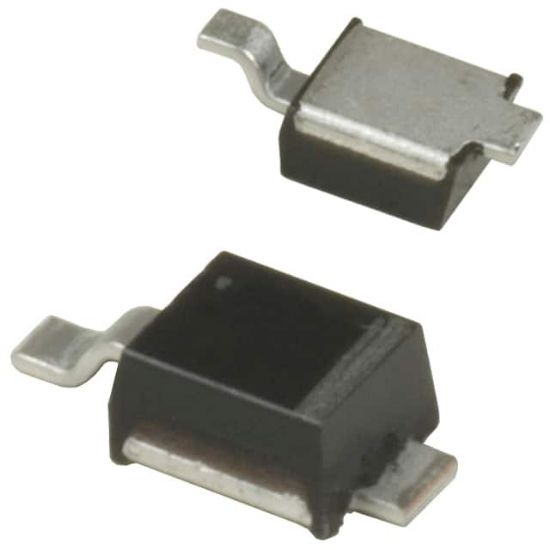

DIODE ZENER 9.1V 3.2W POWERMITE

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: 1PMT5924BT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

1PMT5924BT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
24B	1PMT5924BT1G	ON	POWERMITE-2	2	9.1 V, 3.2 Watt Zener Diode Voltage Regulator

Impedance (Max) (Zzt)	4 Ohms
Power - Max	3.2 W
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 200 mA
Operating Temperature	-55°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	5 μA @ 7 V
Mounting Type	Surface Mount
Supplier Device Package	Powermite
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Zener (Nom) (Vz)	9.1 V
Tolerance	±5%
