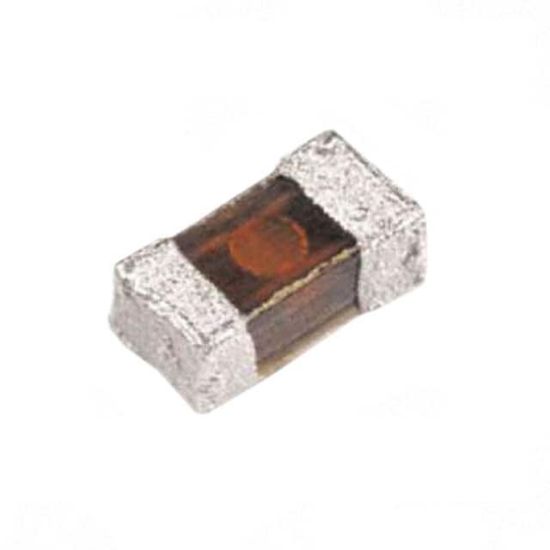

0603ESDA-MLP1

SUPPRESSOR ESD 0.05PF 0603 SMD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Eaton - Electronics Division

SKU: 0603ESDA-MLP1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

0603ESDA-MLP1 Description

Eaton 0603ESDA ESD Suppressors

Eaton 0603ESDA ESD Suppressors provide electrostatic discharge (ESD) protection with a fast response time of <1ns, allowing equipment to pass IEC 61000-4-2 Level 4 test. The single-line, bi-directional 0603ESDA components feature a 0.05pF capacitance, making them ideal for high-speed data applications. The 0603ESDA-MLP1 ESD suppressor provides ESD port protection for mobile phones, smartphones, game consoles, computers, and peripherals. The AEC-Q200-qualified 0603ESDA-AEC1 automotive-grade ESD suppressor is ideal for infotainment/telematics, high-speed data ports/interfaces, automotive body electronics, ADAS systems, and satellite navigation systems.

Supplier Device Package	0603 (1608 Metric)
RoHS	RoHS
Voltage - Clamping	35V
Number of Circuits	1
Applications	General Purpose
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Mounting Type	Surface Mount
Technology	-
