Texas Instruments TPD4E02B04 4-Channel ESD Protection Diode <a href="/TPD4E02B04DQAR" target="_blank" >TPD4E02B04DQAR In Stock</a>

TPD4E02B04DQAR In Stock Texas Instruments TPD4E02B04 4-Channel ESD Protection Diode

Texas Instruments TPD4E02B04 4-Channel ESD Protection Diode is a bidirectional TVS ESD protection diode array for USB Type-C? and HDMI 2.0 circuit protection. The TPD4E02B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.27pF IO capacitance per channel making it ideal for protecting high-speed interfaces up to 10Gbps such as USB 3.1 Gen2. The low dynamic resistance and low clamping voltage ensure system-level protection against transient events.

Specifications

Manufacturer:	Texas Instruments
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	ESD Suppressors
Polarity:	Bidirectional
Working Voltage:	3.6 V
Number of Channels:	4 Channel
Termination Style:	SMD/SMT

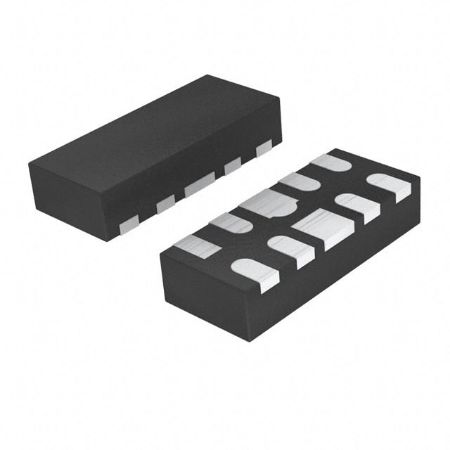

Package / Case:	USON-10
Breakdown Voltage:	5.5 V
Clamping Voltage:	8.8 V
Pppm - Peak Pulse Power Dissipation:	17 W
Vesd - Voltage ESD Contact:	12 kV
Vesd - Voltage ESD Air Gap:	15 kV
Cd - Diode Capacitance:	0.27 pF
Ipp - Peak Pulse Current:	5 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	TPD4E02B04
Packaging:	MouseReel
Brand:	Texas Instruments
Operating Supply Voltage:	3.6 V
Factory Pack Quantity: Factory Pack Quantity:	3000
Subcategory:	TVS Diodes / ESD Suppression Diodes
Unit Weight:	0.000988 oz
