Texas Instruments TPD4E001 ESD Protection Arrays <a href="/TPD4E001RDBVR" target="_blank" >TPD4E001RDBVR In Stock</a>

TPD4E001RDBVR In Stock Texas Instruments TPD4E001 ESD Protection Arrays

Texas Instruments TPD4E001 ESD Protection Arrays are four-channel transient voltage suppressor (TVS) based electrostatic discharge (ESD) protection diode arrays. The TPD4E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). The TPD4E001 arrays have a 1.5pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra-low leakage current (<1nA maximum) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors. The TPD4E001 ESD Protection Arrays are available in DRL(SOT), DBV (SOT23), DCK (SC-70), DRS (QFN), and DPK (PUSON) packages and are specified for –40°C to +85°C operation.

Specifications

Manufacturer:	Texas Instruments
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	ESD Suppressors
Polarity:	Unidirectional
Working Voltage:	5.5 V
Number of Channels:	4 Channel
Termination Style:	SMD/SMT

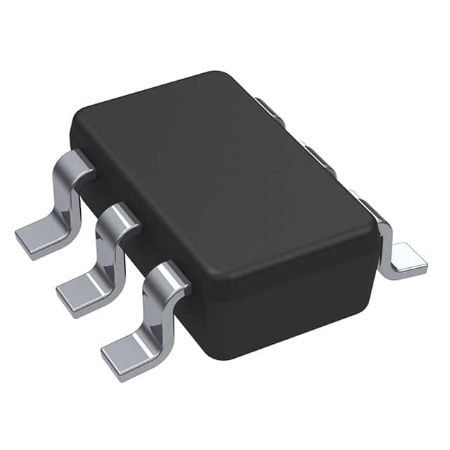

Package / Case:	SOT-23-6
Breakdown Voltage:	11 V
Clamping Voltage:	25 V
Pppm - Peak Pulse Power Dissipation:	100 W
Vesd - Voltage ESD Contact:	8 kV
Vesd - Voltage ESD Air Gap:	15 kV
Cd - Diode Capacitance:	1.5 pF
Ipp - Peak Pulse Current:	5.5 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	MouseReel
Brand:	Texas Instruments
Operating Supply Voltage:	0.9 V to 5.5 V
Factory Pack Quantity: Factory Pack Quantity:	3000
Subcategory:	TVS Diodes / ESD Suppression Diodes
Vf - Forward Voltage:	0.95 V
Unit Weight:	0.000653 oz
