Texas Instruments TPDxE05U06/TPDxE05U06-Q1 TVSs <a href="/TPD1E05U06DPYR" target="_blank" >TPD1E05U06DPYR In Stock</a>

TPD1E05U06DPYR In Stock Texas Instruments TPDxE05U06/TPDxE05U06-Q1 TVSs

Texas Instruments TPDxE05U06/TPDxE05U06-Q1 Transient Voltage Suppressors (TVS) are unidirectional, Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. The devices are rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 level 4 international standard. The TI TPDxE05U06/TPDxE05U06-Q1 Suppressors feature an ultra-low loading capacitance ideal for protecting high-speed signal applications up to 6Gbps. The devices are suitable for various applications, including high-speed signal lines in HDMI 1.4b, HDMI 2.0, USB 3.0, MHL, LVDS, DisplayPort, PCI-Express?, eSata, and V-by-One? HS.

Specifications

Manufacturer:	Texas Instruments
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	ESD Suppressors
Polarity:	Unidirectional
Working Voltage:	5.5 V
Number of Channels:	1 Channel
Termination Style:	SMD/SMT

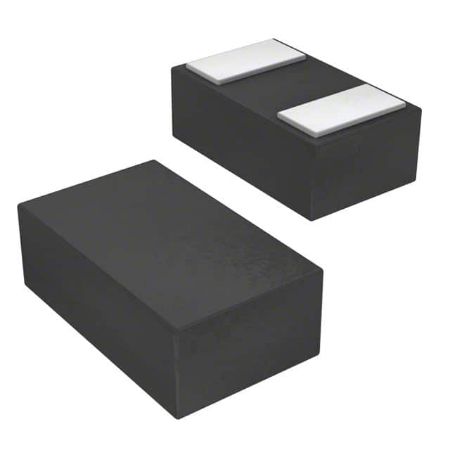

Package / Case:	X2SON-2
Breakdown Voltage:	6 V
Clamping Voltage:	18 V
Pppm - Peak Pulse Power Dissipation:	40 W
Vesd - Voltage ESD Contact:	12 kV
Vesd - Voltage ESD Air Gap:	15 kV
Cd - Diode Capacitance:	0.5 pF
Ipp - Peak Pulse Current:	5 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	TPD1E05U06
Packaging:	MouseReel
Brand:	Texas Instruments
Operating Supply Voltage:	5.5 V
Factory Pack Quantity: Factory Pack Quantity:	10000
Subcategory:	TVS Diodes / ESD Suppression Diodes
Unit Weight:	0.000032 oz
