Texas Instruments TPD1E04U04 1-Channel ESD Protection Diodes <a href="/TPD1E04U04DPYR" target="_blank" >TPD1E04U04DPYR In Stock</a>

TPD1E04U04DPYR In Stock Texas Instruments TPD1E04U04 1-Channel ESD Protection Diodes

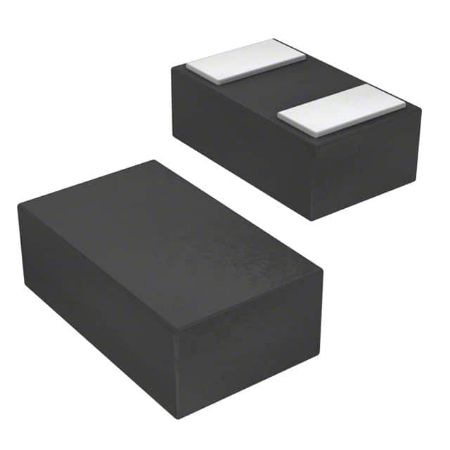

Texas Instruments TPD1E04U04 1-Channel ESD Protection Diodes are a unidirectional TVS ESD protection diode for HDMI 2.0 and USB 3.0 circuit protection. The TPD1E04U04 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.5pF IO capacitance making it ideal for protecting high-speed interfaces up to 6Gbps such as HDMI 2.0 and USB 3.0. The low dynamic resistance and ultra-low clamping voltage ensure system-level protection against transient events for sensitive SoCs. The Texas Instruments TPD1E04U04 is offered in the industry standard 0402 and 0201 packages.

Specifications

Manufacturer:	Texas Instruments
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	ESD Suppressors
Polarity:	Unidirectional
Working Voltage:	3.6 V
Number of Channels:	1 Channel
Termination Style:	SMD/SMT
Package / Case:	X1SON-2
Breakdown Voltage:	4.5 V
Clamping Voltage:	8.9 V
Pppm - Peak Pulse Power Dissipation:	19 W
Vesd - Voltage ESD Contact:	16 kV
Vesd - Voltage ESD Air Gap:	16 kV
Cd - Diode Capacitance:	0.65 pF
Ipp - Peak Pulse Current:	16 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	TPD1E04U04
Packaging:	MouseReel
Brand:	Texas Instruments
Factory Pack Quantity: Factory Pack Quantity:	10000
Subcategory:	TVS Diodes / ESD Suppression Diodes
Vf - Forward Voltage:	0.8 V
Unit Weight:	0.000032 oz
