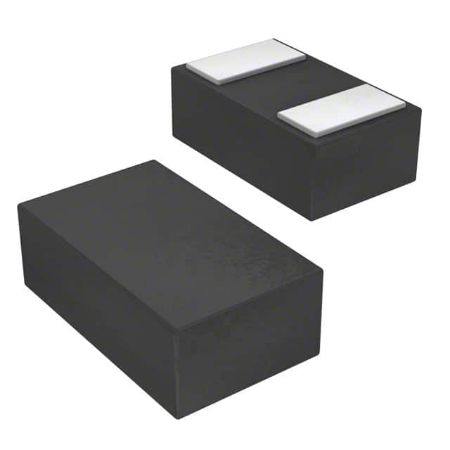

Texas Instruments TPD1E01B04 / TPD1E01B04-Q1 ESD Protection Diode is a bidirectional TVS ESD protection diode array for USB Type-C? and Thunderbolt 3 circuit protection. The TPD1E01B04 / TPD1E01B04-Q1 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). The Texas Instruments TPD1E01B04 / TPD1E01B04-Q1 features a 0.18pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system-level protection against transient events. The TPD1E01B04-Q1 devices are AEC-Q100 qualified for automotive applications.

Specifications

Manufacturer:	Texas Instruments
Product Category:	ESD Suppressors / TVS Diodes
Product Type:	ESD Suppressors
Polarity:	Bidirectional
Working Voltage:	3.6 V
Number of Channels:	1 Channel
Termination Style:	SMD/SMT
Package / Case:	X2SON-2
Breakdown Voltage:	6.4 V
Clamping Voltage:	15 V
Pppm - Peak Pulse Power Dissipation:	27 W
Vesd - Voltage ESD Contact:	15 kV
Vesd - Voltage ESD Air Gap:	17 kV
Cd - Diode Capacitance:	0.18 pF
Ipp - Peak Pulse Current:	16 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	TPD1E01B04
Packaging:	MouseReel
Brand:	Texas Instruments
Factory Pack Quantity: Factory Pack Quantity:	250
Subcategory:	TVS Diodes / ESD Suppression Diodes
Unit Weight:	0.000007 oz
