TZX15C-TR

DIODE ZENER 15V 500MW DO35

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: TZX15C-TR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TZX15C-TR Description

Impedance (Max) (Zzt)	40 Ohms
Power - Max	500 mW
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 175°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	1 μA @ 11.5 V
Mounting Type	Through Hole

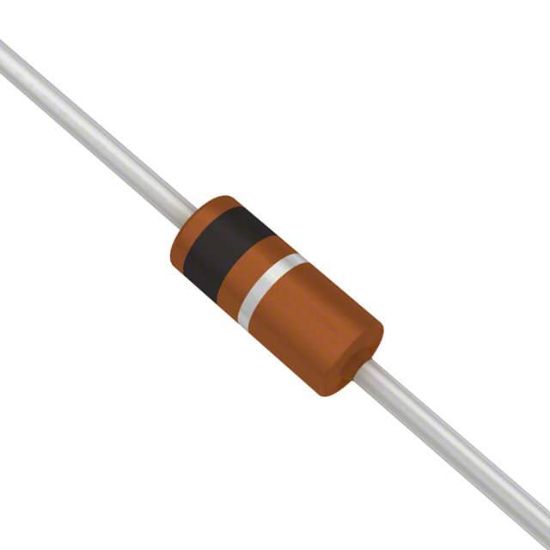

Supplier Device Package	DO-35 (DO-204AH)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Zener (Nom) (Vz)	15 V
Tolerance	-
