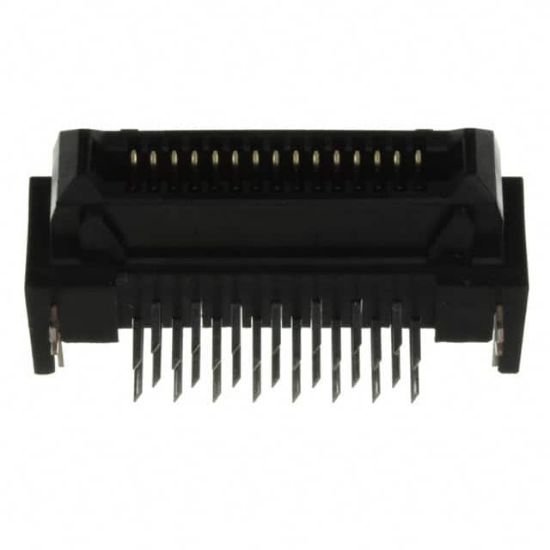

TX24-30R-LT-H1E

CONN RCPT 30POS R/A GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: JAE Electronics

SKU: TX24-30R-LT-H1E

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TX24-30R-LT-H1E Description

Number of Positions	30
Pitch	0.050\" (1.27mm)
Height Above Board	0.354\" (9.00mm)
Features	Board Lock
RoHS	RoHS
Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish Thickness	3.94μin (0.10μm)
Contact Finish	Gold
Package	Tray
Mated Stacking Heights	-
Mounting Type	Through Hole, Right Angle
Number of Rows	2
