SZMMBZ5230BLT1G

DIODE ZENER 4.7V 225MW SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: SZMMBZ5230BLT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SZMMBZ5230BLT1G Description

Impedance (Max) (Zzt)	19 Ohms
Power - Max	225 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	5 μA @ 2 V
Mounting Type	Surface Mount

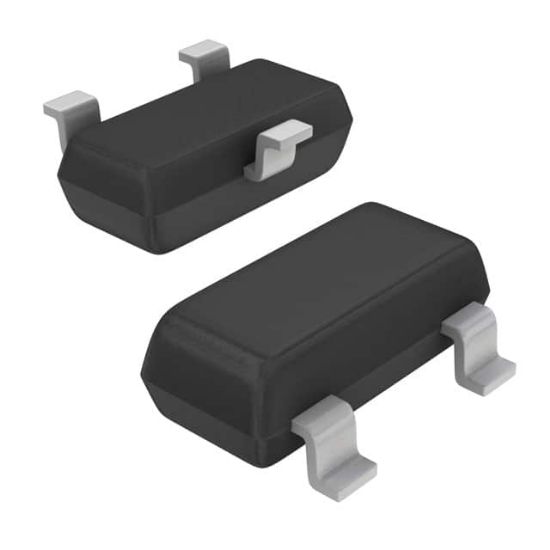

Supplier Device Package	SOT-23-3 (TO-236)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Zener (Nom) (Vz)	4.7 V
Tolerance	±5%
