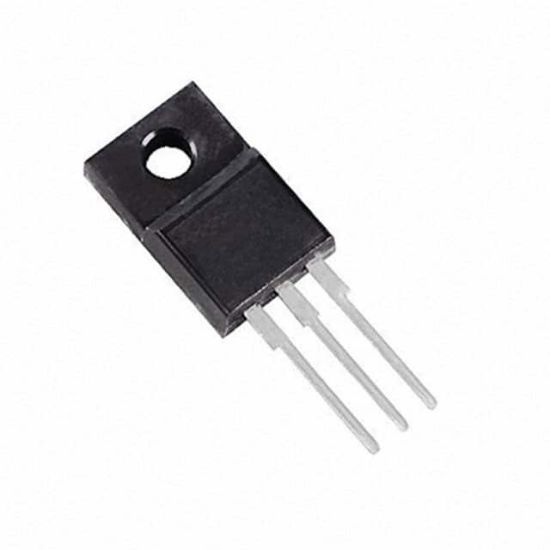

STGFW35HF60W

IGBT 600V 36A 88W TO3PF

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STGFW35HF60W

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STGFW35HF60W Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	36 A
Supplier Device Package	TO-3PF
Gate Charge	140 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	88 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	150 A
Td (on/off) @ 25°C	30ns/175ns
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 20A
Test Condition	400V, 20A, 10Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	-
Switching Energy	290μJ (on), 185μJ (off)
RoHS	RoHS
